Factory Sale Q690D Long Reach Excavator Boom Arm Excavator Attachment

Excavator Attachments Long Arm for 3-36 ton Long Reach Excavator with Bucket and Bucket Cylinder

Zhonghe Machinery Catalog-S - Kathy.pdf

Global Leader in Custom Long-Reach Excavator Solutions

We are a premier manufacturer and trading enterprise, dedicated to engineering high-performance specialized excavator attachments. Our expertise includes custom long arms, telescopic booms, tunnel systems, demolition arms, piling rigs, sliding extenders, rock arms, and a comprehensive range of buckets — including rock, skeleton, mud, ditch, and clamshell designs. We also provide robust quick couplers, hydraulic hammers, rippers, and shears.

Our products are trusted by professionals in over 60 countries and regions worldwide, delivering superior strength, precision, and reliability for the most demanding applications.

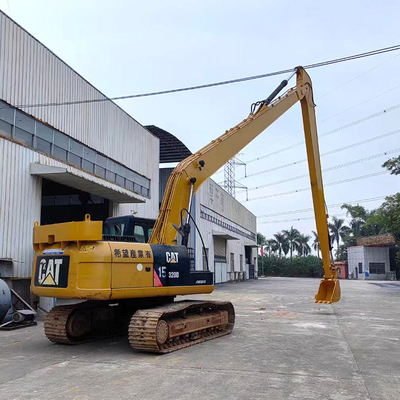

What excavator long reach arm can do

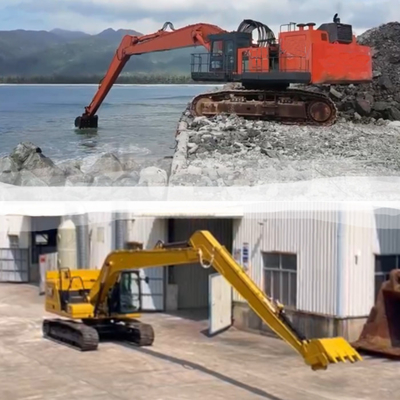

Long reach excavator are widely used on construction sites for digging foundations, trenching and excavating earth and rock, road and highway construction, landscaping and land development works, material handling, and dredging of water bodies to remove sediments to maintain waterways, Excavator long arm can be equipped with a variety of attachments such as buckets, grapples, and forks and are used to handle and move materials in industries such as recycling, forestry, and agriculture.

How can we ensure the quality of our excavator long arms

The boom arm are constructed using high-quality, certified Shaogang Q355B and Q690D steel.

The hydraulic seamless pipe is sourced as per national standards, ensuring precision and seamless performance.

The pin used is made of 40MuCr alloy, while the high-pressure hose features a four-layer steel ring design.

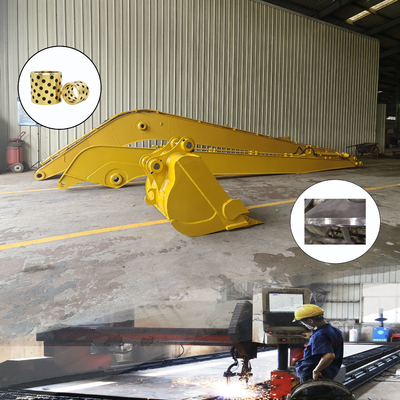

The boom base incorporates a graphite alloy copper sleeve for enhanced durability and performance.



Production process and quality control

1. The long reach arm plate is precision-cut using a plasma cutting needle to ensure accuracy.

2. Before welding, the plate edges are milled (tapered) using a large edge milling machine. This allows for deep penetration of the weld into the steel plate, enhancing the overall performance of the structure.

3.After welding, a double-sided large-scale floor-standing boring machine is employed for precision boring. This ensures the long-reach arm concentricity during operation and extends its service life.

4. Environmentally friendly verified spraying room.



Excavator (ton)	Total Length(mm)	Boom (mm)	Arm (mm)	Max Radius(mm)	Max Depth(mm)	Max Height(mm)	Bucket capacity (cbm)
11-15T	13000	7250	5750	11200	9000	9350	0.15-0.3
20-25T	15400	8220	7180	14500	11300	12600	0.4-0.6
20-30T	18000	10000	8000	17300	13000	14000	0.4-0.7
35-40T	20000	11000	90000	19200	14900	15200	0.6-1.2
40-45T	22000	12000	10000	21300	16000	17000	0.5-1
40-45T	24000	13000	11000	23000	17900	18100	0.5-1.1



About ZhongHe Machinery Manufacturer

Kaiping Zhonghe Machinery Manufacturing Co., Ltd, a manufacturing and trading combo, specializes in customizing different kinds of excavator boom arms and attachments We have more than 14000m' steel structure standardization workshop with a large number of high precision processing equipment as well as a strong and cohesive team. At present, there are more than 60 experienced technical staff, 30 welding workers with over 7 years of experience, 15 senior designers, and a high-tech R&D team. Our annual output of various types of excavator boom arms can reach 600sets. We supply products with high quality and moderate price, which sell well in more than 40 countries and areas. We adhere to" Merit Quality, Sincerity Management, and Customer Satisfaction", and honestly greet customers from home and abroad to negotiate and cooperate with us.



The Best Transportation Solution

Professional Lines: We maintain collaborative partnerships with a diverse range of professional shipping lines renowned for their experience and reliability. These established routes connect vital trade hubs, encompassing all continents and major countries worldwide. Our esteemed partners operate efficient fleets and offer scheduled services, guaranteeing timely delivery of cargo to its destination.

Competitive Freight Rates: Our unwavering commitment lies in providing competitive freight solutions, ensuring our customers benefit from cost-effective ocean shipping services. Through fostering strong collaborative ties with reputable shipping companies, we secure preferential pricing and discounts. This enables us to offer customers competitive freight quotations, empowering them to reduce logistics costs and enhance profitability.

Expedited Delivery: While ocean shipping may entail longer transit times compared to alternative transportation modes, we prioritize expeditious delivery through meticulous logistics management and optimized shipping schedules. Our dedicated focus on the transportation process entails close coordination with shipping companies and relevant agencies to ensure prompt departures, seamless transit, and punctual delivery to our valued customers.



FAQ

Q: Are you a manufacturer?

A: Zhonghe machinery offered a wide range of attachment parts for excavators and dozers. Such as long reach arm, demolition arm, telescopic arm, standard bucket, rock bucket, cleaning bucket, tilting bucket, etc. We know that the perfect combination of high-quality cast steel products and a moderate price is the key to success.

Q: Why choose zhonghe machinery?

A: We have a professional production team and design team to provide each customer with high-quality and personalized customer service to ensure correctness, so we have a good reputation in China, and our annual sales are among the best in our country.

Q: What can I get from you?

A: 1. The product is made of Q355B/Q690D steel, a superior and sturdy material on the market, and the steel is cut with a 45-degree slope and then gas welded, making it more sturdy and 30% longer than normal materials. 2. All accessories are included, no additional purchases are required. Professional online video guides installation to make installation worry-free. 3. Lifetime free online customer service consultation if you have any questions (reply within 12 hours).

Q: How do I start to order?

A: Firstly, talk to our sales about your machine model, working conditions, special needs and deadline. Then our sales will give you proposals FYR. You will receive a quotation ASAP after confirming the proposal.

Q: What are your terms of payment?

A: We prefer T/T (50/50) through Ali Credit Insurance as a trial order.

Q: Are you always delivered on time?

A: We can do is shorten our lead time while keeping the same quality level. So there will not be any problem even if the sea freight is delayed for a couple of days.
